A Complete Guide to Wire Wound Resistor Types and Uses
Apr 28, 2026|
View:66You can see wire-wound resistors in lots of electronic circuits. The wire wound resistor definition says it is a resistor made by wrapping metal wire around a core. Power wire-wound resistor and precision wire-wound resistor both help keep things steady in strong and exact uses. If you want to pick the right part, you should learn about the Guide to & Types of Wire Wound Resistor. The world market for wire-wound resistors keeps getting bigger, as shown below:
Year | Market Size (USD Billion) |
|---|---|
2024 | 8.082 |
2035 | 14.9 |
You can see these resistors are very important for engineers and hobbyists.
Key Takeaways
Wirewound resistors help with exact measurements and strong power jobs. They are great for engineers and people who like to build things.
Pick the right wirewound resistor for your project. Think about how much power it needs, if it stays steady in heat, and how exact it is.
Fusible wirewound resistors keep circuits safe. They work as both a resistor and a fuse. They stop damage if too much current flows.
Non-inductive wirewound resistors are good for high-frequency circuits. They lower unwanted inductance and keep signals clear.
Knowing the good and bad points of wirewound resistors helps you choose well. This gives your circuit strong and correct performance.
Wire Wound Resistor Definition and Basics
What Is a Wirewound Resistor?
Wirewound resistors are used when you need exact measurements and strong power. They have a thin metal wire wrapped around a core that does not conduct electricity. This design helps them handle more current and heat than other resistor types. You see wirewound resistors in circuits that must work steadily. These resistors are good for both business and factory uses. There are also wire wound variable resistors, enamelled wire resistors, and cement-encapsulated wire resistors for special jobs.
Here is a table that shows how wirewound resistors are different:
Characteristic | Description |
|---|---|
Enhanced Precision | Wirewound resistors give very accurate results, which is important for measuring things exactly. |
Efficient Power Management | They can handle lots of power, so they are used in tough jobs. |
Durability and Lifespan | Their strong build means they last a long time and need little fixing. |
Consistent Thermal Performance | They keep their resistance steady even when temperatures change, which is important for careful work. |
Diverse Tolerance Options | Many tolerance choices let you pick the right resistor for your needs. |
Construction and Materials
Wirewound resistors are made by wrapping metal wire around a core. The wire is often copper alloy or silver alloy because these metals conduct electricity well. Tungsten is used for jobs with very high heat. The core is usually ceramic or fiberglass, which helps keep the resistor stable when it gets hot. You can find wire wound variable resistors, enamelled wire resistors, and cement-encapsulated wire resistors, each made for different uses.
Material Type | Properties | Usage Context |
|---|---|---|
Copper Alloys | They have a low temperature coefficient of resistance (0.000008 ppm/°C). | Used for winding the wire |
Silver Alloys | They conduct electricity well and are used in special jobs. | Used in high-performance resistors |
Tungsten | Used for very hot jobs (> ~1300° C) but has a high TCR. | Used for special high-heat jobs |
Ceramic/Fiberglass | These are insulating materials that help keep the resistor stable. | Used as the core for winding wire |
The wire is made from metal alloys that resist electricity.
The wire is wrapped tightly around a core that does not conduct.
The number of turns and the length of the wire decide the resistance.
How Wirewound Resistors Work
Wirewound resistors help control how much current flows and how much heat is made in circuits. The metal wire slows down the flow of electricity, which creates resistance. Because of how they are built, wirewound resistors can handle lots of power and keep their resistance steady even if the temperature changes. This makes them great for jobs where you need things to be accurate and dependable. Wirewound resistors can handle more current and last longer than carbon or metal film resistors. Cement-encapsulated wire resistors and enamelled wire resistors are used where heat and strength are important.
Tip: Pick wirewound resistors when you want steady performance in circuits that need lots of power or exact measurements.
Guide to & Types of Wire Wound Resistor
When you look at the guide to wire wound resistor types, you will notice there are many kinds. Each kind is made for a special job in circuits. You can pick the best one by learning how each works and where to use it.
Power Wirewound Resistors
Power wirewound resistors help control big amounts of current and heat. You find them in circuits that need lots of power, like motor drives or power supplies. These resistors use thick wire and strong cores so they can handle tough jobs.
Here is a table that shows how power wirewound resistors and precision wire wound resistor types are different:
Feature | Power Wirewound Resistors | Precision Wirewound Resistors |
|---|---|---|
Power Handling | Made for high power jobs | Used for medium power jobs |
Temperature Operation | Works at high temperatures | Works at lower temperatures |
Accuracy | Not as accurate as precision types | Very accurate and steady |
Application | Used in high power jobs | Used in measuring tools for exact work |
Power wirewound resistors are strong, but precision wire wound resistor types are more accurate.
Wirewound resistors have different power ratings:
Type of Wirewound Resistor | Typical Power Rating |
|---|---|
Standard | 1W–20W |
Cement (Ceramic-coated) | 5W–50W |
Aluminum-housed | 10W–500W+ |
If you need to control lots of energy, pick wire wound power resistors with higher ratings.
Precision Wirewound Resistors
Precision wire wound resistor types give very exact resistance values. You use them when you need high precision, like in measuring tools or audio equipment. These resistors use special wire and careful winding to keep their values steady.
You can find high precision wire wound resistors with tight tolerance values. Here is a table that shows common tolerances and where you might use them:
Tolerance Value | Applications |
|---|---|
0.005% | High-power jobs |
0.5% | Power supplies, motor controllers |
1% | Audio amplifiers, measuring tools |
Precision wire wound resistor types help you get accurate results in sensitive circuits. You can trust them when you need stable and repeatable measurements.
Tip: If your project needs exact values and little change over time, choose precision wirewound resistors.
Fusible Wirewound Resistors
Fusible wirewound resistors keep your circuits safe from damage. They work as both a resistor and a fuse. Normally, they limit current like other wirewound resistors. If too much current flows, they burn open and stop the flow, saving your other parts.
You see fusible wirewound resistors in:
High-power jobs
Car electronics
Factory machines
These resistors help you meet safety rules and keep your equipment safe.
Non-Inductive Wirewound Resistors
Non-inductive wirewound resistors fix problems in high-frequency circuits. Regular wirewound resistors can act like tiny coils and add unwanted inductance. Non-inductive types use special winding methods, like bifilar winding, to cancel this effect.
You benefit from non-inductive wirewound resistors because:
They cut down inductance, which keeps signals clean in high-frequency circuits.
They work well in AC circuits and audio systems where you want to avoid signal distortion.
They are great for pulse and audio jobs.
If you need to keep your signals sharp and clear, non-inductive wirewound resistors are the best choice.
Application-Based Types (Commercial, Industrial, Military)
The guide to wire wound resistor types also includes special designs for different places. You find wirewound resistors made for commercial, industrial, and military uses.
Adaptation Aspect | Description |
|---|---|
Specialized Encapsulation | Resistors are covered in materials that survive tough conditions, making them last longer. |
Protection Against Factors | Strong casing keeps parts safe from water, temperature changes, and bumps. |
Compliance with Standards | Military types follow MIL-PRF-26 rules for reliability and strength. |
You use commercial types for everyday electronics. Industrial types work well in factories and machines. Military types survive harsh conditions and meet strict rules.
Modified Types (Current and Temperature Sensors)
You can also find wirewound resistors changed for sensing current and temperature. These types use special alloys to keep their resistance steady as temperatures change. Some use winding methods that make them react quickly to heat.
For current sensing, you see:
Low resistance values in the milliohm range
Four-terminal construction to reduce errors
These features help you measure current and temperature with high precision. You can trust these wirewound resistors in test equipment and control systems.
Note: When you follow the guide to wire wound resistor types, you can match each kind to your project’s needs. This helps you build safer, more reliable circuits.

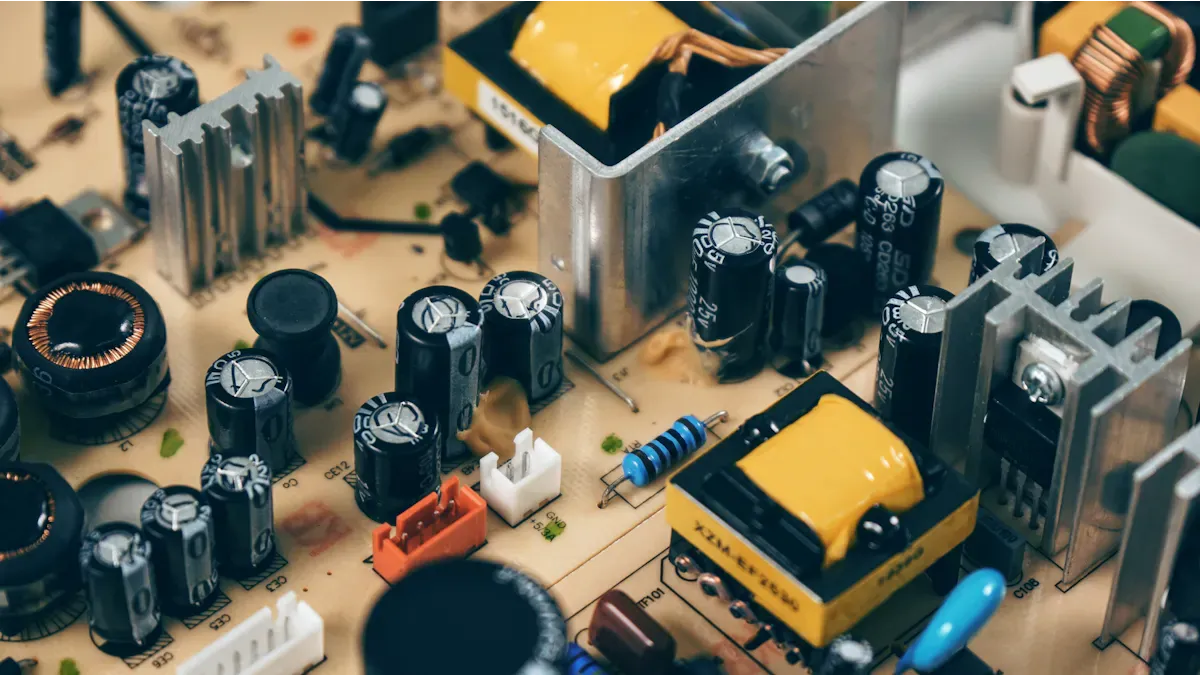

Applications of Wirewound Resistors
Power Control and High Current Circuits
Wirewound resistors are used in power control circuits. They handle lots of energy, sometimes over 1000 W. You use them to limit current and stop overheating in motor systems. They are important for load testing and power supply jobs. Wirewound resistors give exact resistance and are dependable. This helps you manage power safely. You see them in factories, cars, and airplanes. They work well in high power jobs.
Industry | Reason for Reliance |
|---|---|
Manufacturing | Variable resistors help machines and automation work. |
Automotive | Used in advanced electronics, like electric cars. |
Aerospace | Needed for control systems in planes and radios. |
Precision Measurement and Calibration
Wirewound resistors help you get accurate measurements. You use them in multimeters and lab tools. They are trusted for their steady performance. This lets you believe the results in research and industry. Wirewound resistors are used in calibration devices for high accuracy.
Wirewound resistors are chosen for their accuracy in tools.
Their low tolerance and steady work make them good for measuring.
Circuit Protection and Safety
Wirewound resistors keep circuits safe. They handle lots of power and make little noise. Their accuracy is very good. These features make them great for high power and careful measuring. Wirewound resistors are stronger than metal oxide resistors. They are more reliable in hot and tough jobs.
Tip: Pick wirewound resistors when you need safety and reliability in hard places.
Audio and Signal Processing
Wirewound resistors help audio and signal circuits work better. You get clear sound and steady performance. They resist heat and stay accurate. Their low noise means less distortion. You hear cleaner and more true sound. Audio experts like wirewound resistors for their reliability and accuracy.
Wirewound resistors give clear sound and handle power without distortion.
Their accuracy and low noise help make audio better.
Specialized Uses in Sensors
Wirewound resistors are used in special sensor jobs. You use them for temperature sensing because they react fast. For current sensing, wirewound resistors are small for handheld tools and accurate for big machines. Their inductive properties help measure current by changes in reactance. You trust wirewound resistors for reliability and accuracy in sensors.
Note: Wirewound resistors are reliable and accurate in many jobs. Engineers and hobbyists choose them often.
Advantages and Limitations of Wire-Wound Resistor
Benefits of Wirewound Resistors
Wirewound resistors have many good points. They work well in hard jobs and tough circuits. Here are some reasons to use them:
You can put them in circuits that need to handle a lot of extra power.
They can take high power and strong current without breaking.
Their resistance stays steady, even if the temperature changes.
They have low tolerance, so they are very accurate.
Their resistance does not change much over time because of heat.
They are built strong and last a long time.
They are great for factories and power systems.
Some types have very low resistance for special uses.
Tip: Pick wirewound resistors if you want something that lasts and stays correct.
Drawbacks and Limitations
Wirewound resistors also have some problems. These can make things harder in new electronics.
They can have extra inductance, which is bad for high-frequency circuits.
They are bigger, so they do not fit well in small places.
They usually cost more than other resistor types.
Small changes when making them can change how they work.
They do not work well above 50 kHz because of inductance and capacitance.
It can be hard to match values if you use different sizes or resistances.
Their heat and strength can change as time goes on, which affects how steady they are.
Note: Think about these problems before you pick wirewound resistors for your project.
Comparison with Other Resistor Types
Here is a table to help you compare wirewound, metal film, and carbon film resistors:
Resistor Type | Precision | Stability (ppm/yr) | Power Handling (kW) | Cost Comparison |
|---|---|---|---|---|
Wirewound | 0.005% | 15-50 | Up to 2.5 | Higher than carbon film |
Metal Film | >0.01% | 200-600 | Moderate | Moderate |
Carbon Film | ±5% | Poor | Low | Lower than wirewound |
Wirewound resistors are very precise and stay steady. They make little noise, which is good for sensitive circuits. Metal film resistors are better than carbon film for accuracy, but not as good as wirewound. Carbon film resistors are cheaper, but they are not as reliable or accurate.
Remember: Knowing the good and bad points of wirewound resistors helps you pick the right one for your needs.
How to Choose Wirewound Resistors
Key Selection Criteria
You should think about a few things when picking a wirewound resistor. First, decide where you will use it. If your panel is outside or near the ocean, choose an enamelled coating. Cemented or enamelled wirewound resistors are good for jobs with steady loads. Bare ribbon wire works well for pulsed loads. If your project faces strong shaking, cemented and enamelled resistors are tougher.
Here is a list to help you pick the right wirewound resistor for high-power jobs:
Check the place. Enamelled coatings keep out water and salt.
Look at how often it works. Cemented or enamelled types are best for steady jobs. Bare ribbon wire is good for pulsed jobs.
Think about shaking. Cemented and enamelled resistors stay strong in rough spots.
Tip: Always pick a wirewound resistor that fits your project’s needs.
Matching Type to Application
You need to match the wirewound resistor type to your project. Different types work better in different jobs. Use the table below to compare features and find the best one for your project.
Aspect | Description |
|---|---|
Temperature Handling | Wirewound resistors work in very hot and cold places, from -55°C to 275°C. |
Power Dissipation | Bigger resistors take in and let out more power, which helps in high-energy jobs. |
Pulse Performance | Medical jobs need resistors that handle short, strong bursts. |
Precision | Four-terminal wirewound resistors are very accurate and can handle up to 25A in jobs. |
Material Choice | Low-TCR alloys help resistors work better when temperatures change. |
Note: You get better results when you pick the wirewound resistor that matches your project.
Common Mistakes to Avoid
You might make mistakes when picking wirewound resistors for your project. These mistakes can cause problems in your circuits. The table below shows common mistakes and how you can avoid them.
Common Mistakes | Workarounds |
|---|---|
Symbol mismatches | Write the type clearly in your parts list and diagram for your project. |
Incorrect taper types | Check the type code and curves in the data sheet for your project. |
Improper installation methods | Use a single parts library and check for mechanical problems in your project. |
Alert: Always check your choices to stop errors in your project.
A wire wound resistor has resistive wire wrapped around a core that does not conduct. You can pick power, precision, fusible, or non-inductive types for different jobs. These jobs include motor drives, calibration, and circuit protection. Choosing the right resistor makes your project more reliable and accurate.
Remember: Strong materials and exact resistance values help your circuits last longer and work better.
Recommended resources for further reading:
Wire Wound Resistors: Complete Guide to Construction, Applications, and Selection
Case Study on Industrial Motor Drive Application
Type | Characteristics | Applications |
|---|---|---|
Wire-Wound | Handles lots of power, makes very little noise, has inductance | Used in power resistors, precision shunts, motor drives, and power supplies |
FAQ
What makes wirewound resistors different from other types?
Wirewound resistors have metal wire wrapped around a core. They are very accurate and can handle lots of power. Other resistor types use films or carbon. These types do not handle as much power.
Can you use wirewound resistors in audio circuits?
Yes, wirewound resistors work in audio circuits. They make little noise and keep performance steady. You hear clear sound with less distortion.
How do you choose the right resistor for your project?
Check the power rating and tolerance for your job. Think about where you will use the resistor. Match the resistor type to your project. Look at the datasheet for more information.
Are wirewound resistors safe for high-temperature jobs?
Wirewound resistors work well in hot jobs. You see them in factories and machines. They stay steady and last longer than other types.
Do wirewound resistors have any limitations?
Wirewound resistors can be big and have extra inductance. You may not use them in high-frequency circuits. They cost more than film or carbon types.
