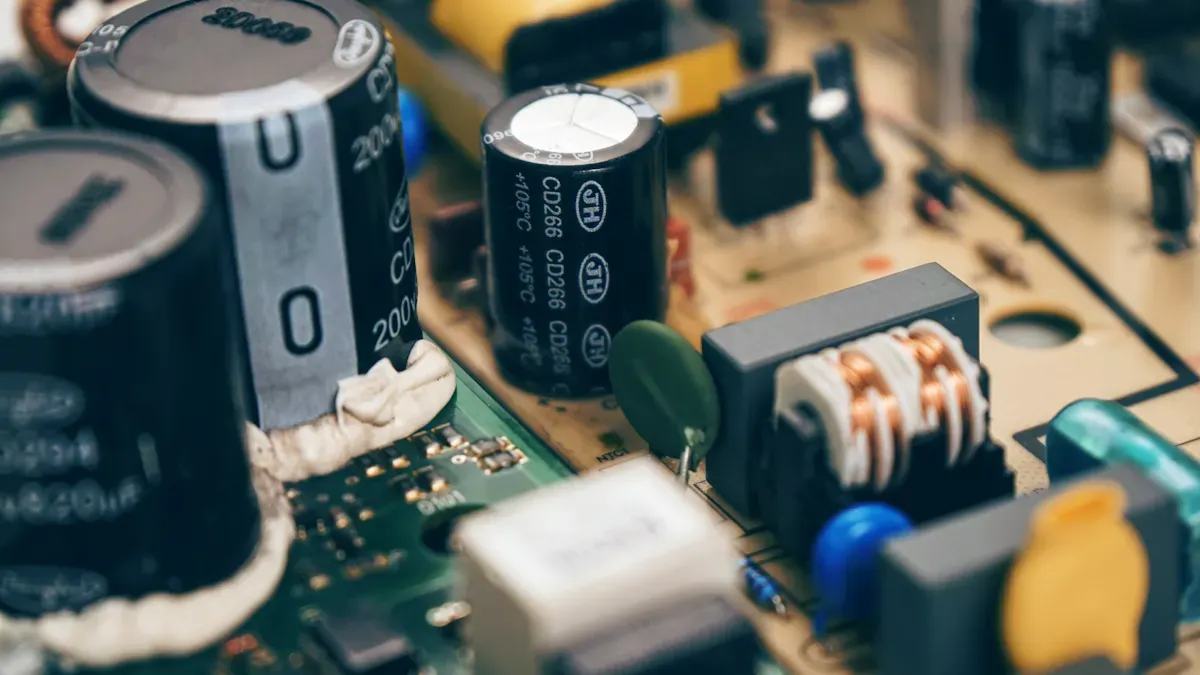

How to Choose the Right Common-Mode Choke for Power Electronics
Mar 12, 2026|
View:131
When learning how to select a common mode choke for power electronics, you should consider a few key factors. Impedance, frequency range, and the amount of current it can handle are crucial. First, determine how much noise you need to block. Next, verify the regulations your project must comply with. Many designs need to meet standards for electromagnetic interference. Examples include FCC Part 15 and IEC 61800. The table below outlines some common standards:
Standard | Description |
|---|---|
IPC-2221 | PCB design guidelines for ESD and arcing prevention. |
IPC-2152 | Trace current-carrying capacity for high-power designs. |
IPC-6012 | PCB quality, dielectric strength, and thermal performance. |
IPC-A-600 | Visual acceptance criteria for PCBs. |
UL 60950-1 | Safety for IT equipment, insulation, and fault current limits. |
UL 1950 | Safety for a wide range of electronic equipment. |
IEC 61800 | Power drive systems, EMI, and safety requirements. |
FCC Part 15 | Radiated and conducted EMI for electronics in the U.S. |
CISPR 22 | European EMI standard for IT equipment. |
Follow a step-by-step approach as you learn how to select a common-mode choke for power electronics. Always check the values in the datasheet and compare both common-mode and differential-mode impedance.
Key Takeaways
First, find out your circuit's voltage, current, and frequency. Do this before you pick a common-mode choke.
Pick a choke that has high impedance at the noise frequency. This helps block signals you do not want.
Always look at the current and voltage ratings. Make sure the choke can handle what your circuit needs.
Check the choke's core material and how it is made. Match these to the noise frequency you want to stop.
Use a step-by-step process when you choose. This helps you avoid mistakes and keeps your design safe.
Application Requirements
Voltage, Current, and Frequency
You need to know the voltage, current, and frequency in your power electronics circuit before picking a common-mode choke. These numbers help you choose a choke that is safe and works well. Most power electronics use values in certain ranges. The table below shows some common values you might see:
Specification | Typical Range |
|---|---|
Inductance Value | 1 μH – 50 mH |
Saturation Current | 0.5 A – 20+ A |
Frequency Range | 1 kHz – 500 MHz |
Always pick a choke that can handle the highest current your circuit will use all the time. If you choose a choke with a lower current rating, it can get too hot or break. You also need to match the choke’s impedance to the noise frequency you want to block. For most power electronics, this means finding chokes that work best in the tens to hundreds of megahertz range.
Tip: Look at the datasheet for the choke’s frequency response. This helps you know if the choke will block the noise in your circuit.
Noise Suppression and Standards
You need to know what kind and how much noise is in your system. Common-mode chokes help lower electromagnetic interference (EMI) and radio frequency interference (RFI). The strength and frequency of this noise help you pick the right choke. Find chokes that have high impedance at the noise frequency you want to stop.
The choke must handle the highest current your circuit uses.
Pick a choke with the most impedance at the noise frequency you want to block.
Choose the core material and winding style based on both the working and noise frequencies.
You also need to know what standards your design must follow. Many products must pass tests for EMI and safety. Standards like FCC Part 15 and IEC 61800 set rules for noise and safety. Meeting these standards helps your product work well and pass checks.
Note: Always check the newest standards for your area and project. This makes sure your design meets all the rules.
How to Select a Common-Mode Choke for Power Electronics
Impedance and Frequency Range
When you pick a common-mode choke for power electronics, you need to think about impedance and frequency range. Impedance shows how well the choke stops unwanted noise. The impedance value changes when the frequency changes. If the choke has high impedance at the noise frequency, it blocks more interference. If the impedance is low at the frequencies you want, your signals can pass through easily.
Here is a table that shows how impedance at different frequencies affects performance:
Frequency (MHz) | Impedance (Ω) | Effect on Performance |
|---|---|---|
100 | 60 | Significant noise reduction in data transmission lines |
Low Frequencies | Low | Minimal impact on desired differential signals |
High impedance at the noise frequency is important for blocking noise.
Low impedance for differential signals helps keep your signals strong.
The choke’s impedance changes with frequency, so you must match it to your needs.
You should always check both common-mode and differential-mode impedance. Common-mode impedance blocks noise on both lines. Differential-mode impedance affects signals that move in opposite directions. If you pick a choke with high differential-mode impedance, you might lose signal quality. Try to find a balance that works for your project.
Current and Voltage Ratings
You need to know the current and voltage ratings when you choose a common-mode choke for power electronics. The current rating tells you the most current the choke can handle without getting too hot. The voltage rating shows the highest voltage the choke can block safely between its windings. If you pick a choke with ratings that are too low, it could get damaged or stop working.
Here is a table that explains the main parameters:
Parameter | Description |
|---|---|
Current Rating | Maximum continuous current (e.g., 1A to 50A or more) |
Voltage Rating | Maximum voltage across windings for insulation safety |
Impedance at Frequency | Specified in ohms at a given frequency (e.g., 1kΩ @ 100MHz) |
DC Resistance (DCR) | Affects power loss and thermal performance |
You should always pick a choke with a current rating higher than your circuit’s highest current. This keeps the choke cool and safe. The voltage rating must also be as high as or higher than your system’s highest voltage. DC resistance affects how much heat the choke makes. Lower DCR means less heat and better performance.
Core Material and Construction
The core material and how the choke is built are important when you pick a common-mode choke for power electronics. Ferrite cores are good for blocking high-frequency noise. They have high permeability and do not lose much energy. This makes them good for most power electronics. Powdered iron cores are better for blocking low-frequency noise. The material you pick changes how the choke works.
How the choke is made also matters. The number of turns, the thickness of the wire, and how the wire is wrapped all change how well the choke blocks noise. Good construction helps filter out EMI. You also need to put the choke in the right place in your circuit. If you put it in the wrong spot, you could get new problems like unwanted resonances or mismatches.
The core can get hot from resistive and magnetic losses.
You need to check the thermal properties to keep the choke safe.
Sometimes, you need extra space, airflow, or cooling to prevent overheating.
Size and Mounting
Size and mounting are important when you pick a common-mode choke for power electronics. The size affects how much current the choke can handle. Bigger chokes can carry more current and have higher inductance. This helps block more noise. Longer chokes may need better cooling so they do not get too hot.
You can pick surface mount or through-hole chokes. Surface mount chokes save space and are good for machines that build boards. Through-hole chokes are easier to handle and can carry more current. Your choice changes your circuit layout, how much space you need, and how you manage heat.
Surface mount
Through-hole
The shape and length of the choke also affect how well it gets rid of heat. Good thermal management keeps the choke safe and working well.
Tip: Always match the size and mounting style to your board layout and current needs. This helps your design stay efficient and safe.
Now you know the main things to think about when you pick a common-mode choke for power electronics. Focus on impedance, frequency, current, voltage, core material, construction, size, and mounting. This will help you choose the best choke for your project.

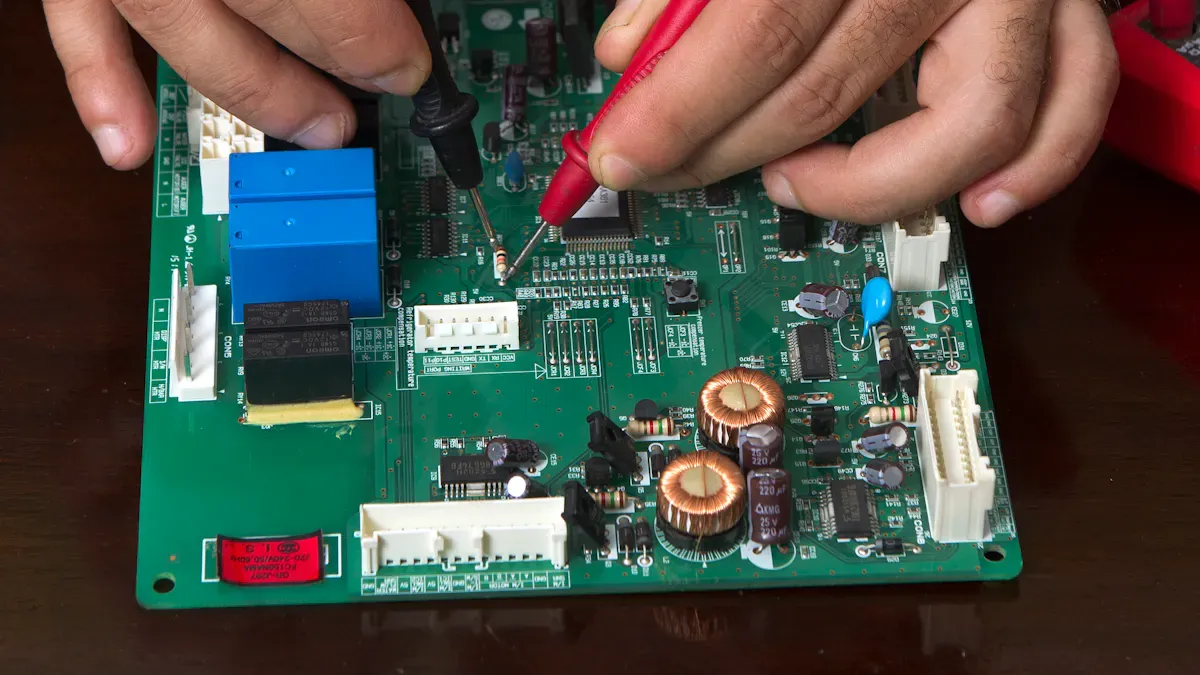

Reading Choke Specifications
Key Datasheet Parameters
When you read datasheets for common-mode chokes, focus on a few important numbers. These numbers help you know if the choke is right for your power electronics project. The table below explains what each number means:
Parameter | Description |
|---|---|
Current Rating | The maximum continuous current the choke can handle without overheating. |
Voltage Rating | The maximum voltage across windings, important for insulation safety. |
Impedance at Frequency | Shows how well the choke blocks noise at a certain frequency. |
DC Resistance (DCR) | Affects power loss and how much heat the choke makes. |
Always check the current rating first. This tells you if the choke can handle the current in your circuit. The voltage rating helps keep your design safe from insulation problems. Impedance at the right frequency shows how well the choke blocks noise. DC resistance tells you how much energy turns into heat.
Tip: Make sure these numbers match your circuit’s needs. This is an important step in How to Select a Common-Mode Choke for Power Electronics.
Comparing Manufacturers
Different companies make chokes with similar ratings. You need to look at datasheets closely. Find graphs and tables that show impedance at different frequencies. Some datasheets have more details than others.
Check if the company tests chokes the same way.
Look for certifications or proof the choke meets standards.
Compare the size and how you can mount the choke.
Look at data about how long the choke lasts and how hot it gets.
If you see big differences in the datasheets, ask the company for more facts. Good companies give you all the test data and answer your questions fast. This helps you pick the right choke and avoid problems later.
Selection Process
Step-by-Step Guide
You can follow a clear process when you need to choose a common-mode choke for your power electronics project. This guide helps you avoid mistakes and makes sure you pick the right part.
Identify Your Circuit Needs
Write down the voltage, current, and frequency for your circuit. These numbers help you find chokes that fit your design.Check Noise Problems
Measure or estimate the noise in your system. Find out the main noise frequencies you want to block.Review Standards and Rules
Look up the EMI and safety standards for your project. Make sure your choke will help you meet these rules.Pick the Right Impedance
Choose a choke with high impedance at the noise frequency. Check both common-mode and differential-mode impedance.Match Current and Voltage Ratings
Select a choke with current and voltage ratings higher than your circuit’s needs. This keeps your design safe.Choose Core Material and Size
Decide if you need a ferrite or powdered iron core. Pick the size and mounting style that fits your board.Read the Datasheet
Study the datasheet for each choke. Compare key numbers like impedance, current rating, and DC resistance.
Tip: Use this checklist every time you want to know how to select a common-mode choke for power electronics.
Example Application
Let’s say you design a DC-DC converter for an industrial power supply. Your circuit runs at 24V and 5A. You see noise at 10 MHz. You need to meet FCC Part 15 rules.
You look for a choke with at least 6A current rating and 30V voltage rating.
You pick a ferrite core for high-frequency noise.
You check the datasheet for high impedance at 10 MHz.
You choose a surface mount choke to save space.
This process helps you select a choke that blocks noise and meets safety rules.
Common Mistakes
Selection Errors
You can make mistakes when picking a common-mode choke for power electronics. These mistakes can make your circuit not work or break safety rules. Here are some common errors:
Ignoring Current Rating: You might pick a choke that cannot handle the highest current in your circuit. This can cause overheating or even damage.
Choosing the Wrong Impedance: If you select a choke with low impedance at the noise frequency, it will not block enough noise.
Overlooking Differential-Mode Effects: You may focus only on common-mode impedance and forget about differential-mode impedance. This can hurt your signal quality.
Not Checking Standards: You might forget to check EMI or safety standards. Your product could fail tests or not get certified.
Selecting the Wrong Core Material: If you use the wrong core, the choke may not block the right frequencies.
Ignoring Size and Mounting: You may choose a choke that does not fit your board or cannot handle the heat.
Tip: Always check the datasheet before you pick a choke.
How to Avoid Them
You can stop these mistakes by following easy steps. Use this checklist to help you:
Step | What to Do |
|---|---|
Check Current Rating | Pick a choke with a higher rating than needed |
Match Impedance to Noise | Find high impedance at your noise frequency |
Review Both Impedances | Look at common-mode and differential-mode data |
Confirm Standards | Make sure the choke meets all required rules |
Choose the Right Core | Select ferrite for high, iron for low frequency |
Fit Size and Mounting | Ensure the choke fits your board and layout |
If you follow these steps, you will pick a choke that works well and keeps your project safe.
You should always read the datasheet and compare several choices. Ask someone for help if you do not understand something. Careful picking helps you avoid trouble and saves time.
You can pick the right common-mode choke by matching its specs to your project. Always use a step-by-step plan and check the datasheet twice. This helps you reach your performance and rule goals.
Key Takeaway | Description |
|---|---|
Engineered Chokes | Use chokes made for EMI control when you design your project. |
Impedance Stability | Choose chokes that keep impedance steady in all situations. |
Design Phase Choice | Pick chokes early so you meet rules and make your project work better. |
If you do these things, your signals will be clearer, you will have less EMI, and your system will be more reliable.
FAQ
What is the main purpose of a common-mode choke?
You use a common-mode choke to block unwanted noise signals. It helps your circuit pass EMI tests and keeps your device working safely.
How do you know which core material to choose?
You pick ferrite cores for high-frequency noise. You choose powdered iron for low-frequency noise. Always check your noise frequency before you decide.
Can you use any common-mode choke for any power level?
No. You must match the choke’s current and voltage ratings to your circuit. Using the wrong rating can cause overheating or failure.
Where should you place a common-mode choke in your circuit?
You place the choke as close as possible to the noise source or power entry point. This gives you the best noise suppression.
